Specification of Fireproof ACP sheets
Fire-resistant aluminum sheet is a new type of high-grade wall decoration with fire safety materials. It is a new type of metal plastic composite material made of coated aluminum plate and special flame retardant polyethylene plastic core by high molecular bonding film (or hot melt glue) by thermal pressure. Because of its elegant appearance, beautiful fashion, fire protection, construction convenience and other advantages, is considered to be modern curtain wall decoration of new high-grade decorative materials, the development prospects are very promising. Mainly used in airports, stations, subways, sports stadiums, shopping malls, office buildings, high-end cultural and entertainment centers and other public places.
Specification of Fireproof ACP sheets
Fireproof ACP sheets width can be 1220mm, 1250mm, 1500mm. The length can be customized.
Specifications of ACP | |
Width | 1220mm, 1250mm, 1500mm |
Length | 2440mm , 3050mm, 4050mm , 5000mm |
Panel Thickness | 2mm , 3mm , 4mm , 5mm, 6mm |
Alu.skin Thickness | 0.10mm ~ 0.50mm : 0.10mm , 0.15mm , 0.21mm, 0.30mm , 0.40mm ,0.50mm |
Coating | Pvdf Pe |
Core Materials | Fireproof core |
Standard Size | 1220 *2440mm (4‘ *8') ; 15OO*3O5Omm ( 5' * 10*) |
Others | custom size accept |
Color chart for Fireproof ACP sheets
Fireproof ACP sheets can choose various colors, Also can be wood color and stone color.
Advantages for Fireproof ACP sheets
1. Scientific integration of non-flammable materials, non-combustible inorganic materials (core materials), metal materials, to achieve strength, flexibility, fire prevention, moisture, insulation, sound insulation, decoration of the perfect unity.
2. superior fire protection performance, in the combustion inspection, zero fire spread, halogen-free, non-toxic, drip-free, radiation-free, etc. have proved its unparalleled safety performance, at the same time with green characteristics.
3. excellent decorative performance, three coating system, HYLR5000 or KYNAR500 as raw materials, excellent technology, elegant and beautiful, corrosion-resistant, pollution-resistant, long-lasting.
4. strength and flexibility of the perfect combination, completely make up for the lack of aluminum plate strength defects, bending radius of at least 15cm, can do hyperbolic shape, simple installation, simple maintenance, low cost.

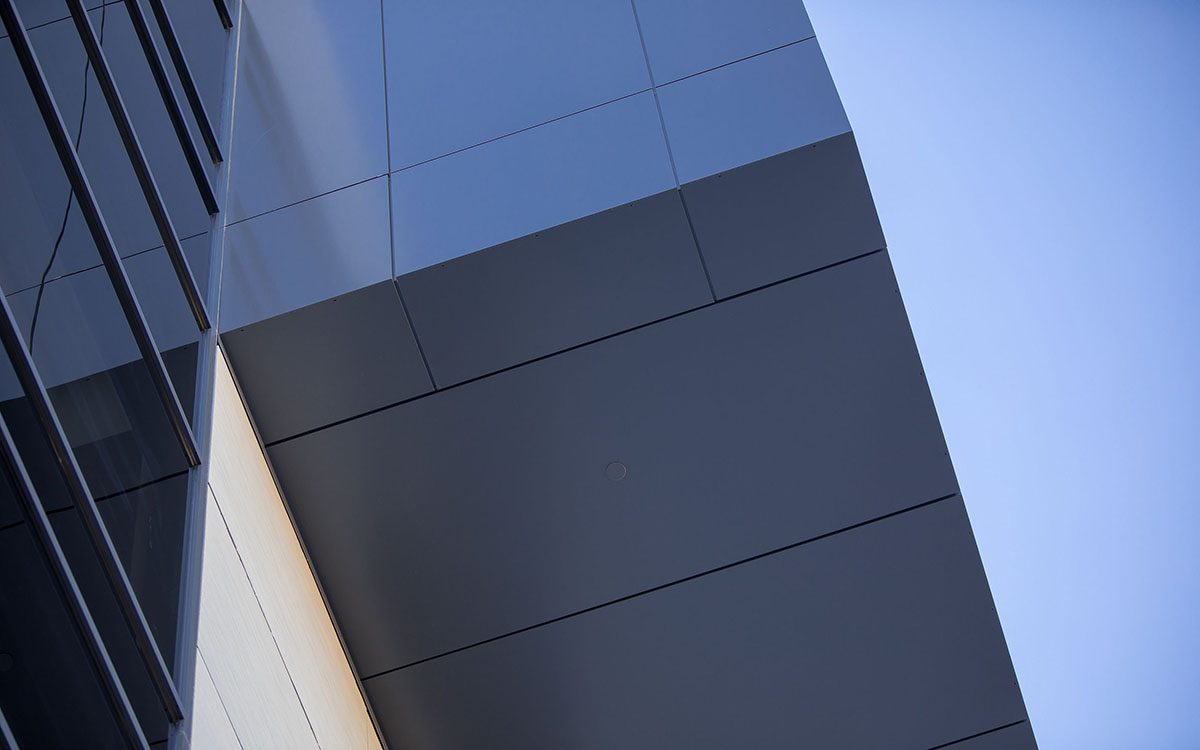

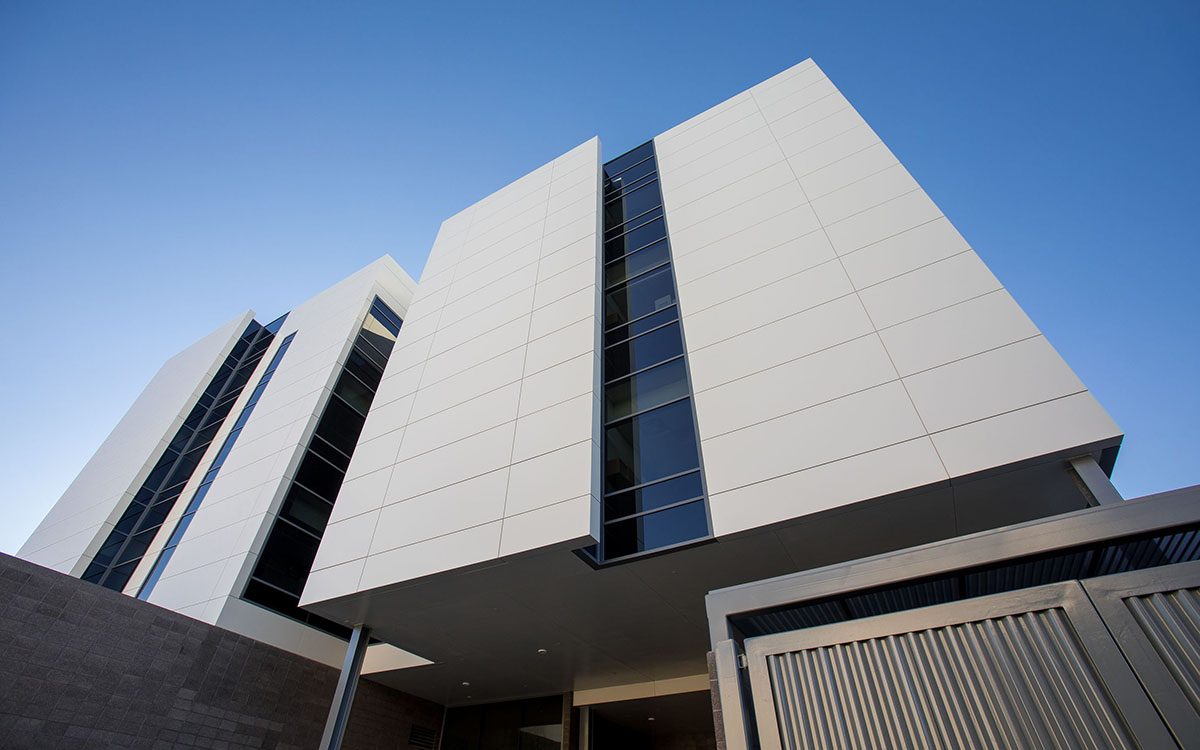

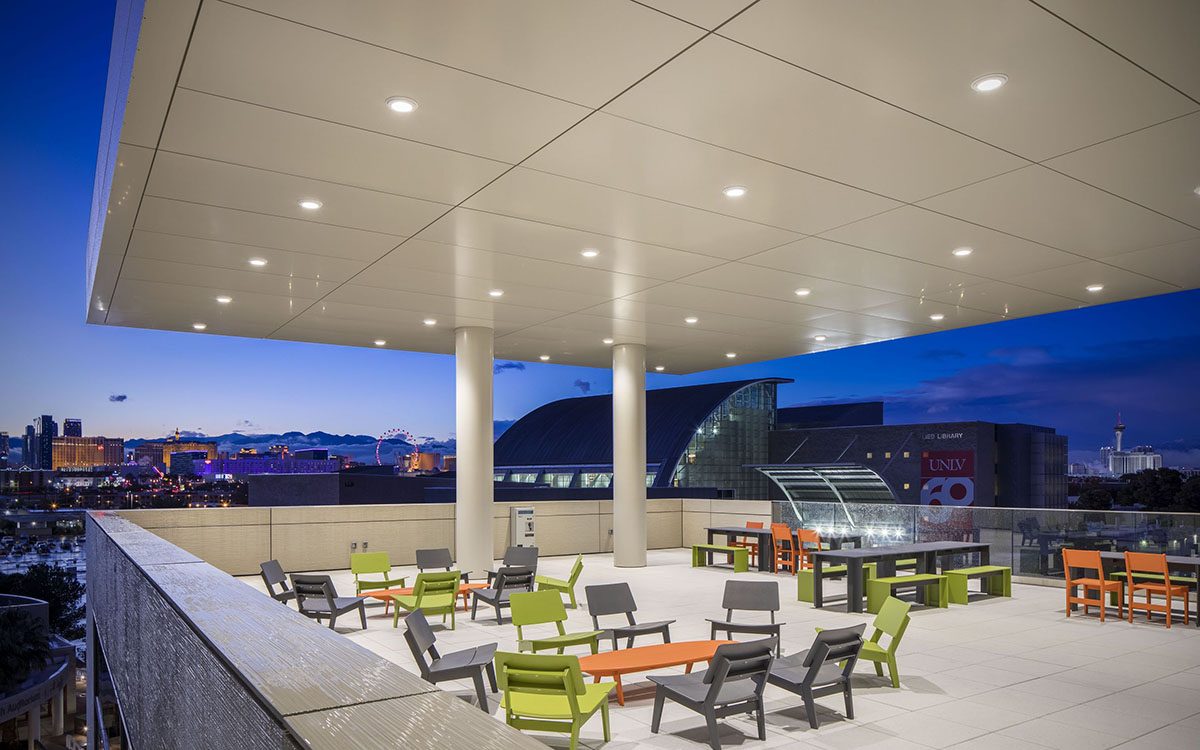

Applications for Fireproof ACP sheets:
airports, railway stations, gymnasiums, office buildings, shopping malls, entertainment venues, etc.
Quality Standard of Fireproof ACP sheets
A、 fire-resistant aluminum sheet (B1 grade refractory material) detection indicators and requirements
(1), according to test, the average remaining length of each set of test pieces is 150mm (the remaining length of any of the test pieces . 0), and the average flue gas temperature peak of each test is 200 degrees C
(2), according to test, the flame tip height index 150mm, and does not allow the burning drops ignited filter paper phenomenon;
(3) according to test, smoke density grade (SDR) s.75.
B、fire-resistant aluminum plastic plate (A-grade non-combustible composite core material) detection indicators and requirements
(1), according to test, the average remaining length of each set of test pieces is 350mm, (the remaining length of any of the test pieces) 200mm), and the average flue gas temperature peak per test is 125 degrees C, the back of the test piece without any combustion phenomenon
(2), according to test, smoke density rating (SDR) ≤15
(3), according to and test, the material heat value of 4.2MJ/kg, and the release of heat per unit area of the test piece s.16.8MJ/kg m2
(4), according to test, the material combustion flue gas toxicity of the total non-lethal concentration Lco s 25.0 mg/L, the infected period of the mice did not die, infected within three days of the mouse did not die, and weight recovery.
Fire-resistant aluminum plastic plate special flame retardant polyethylene granules, must be extruded into the plate on the production line, and then combined with aluminum plate into a fire-resistant aluminum sheet, before fire-resistant B1 or A-grade detection and grading.
Ordinary aluminum sheet because of its plastic core material using flammable material polyethylene as the substrate, in the vertical combustion furnace for fire grade detection, because the aluminum plate heat transfer speed is very fast, in the high temperature core material and aluminum plate delayer, resulting in polyethylene core material in high temperature and flame direct contact, while polyethylene easy to burn drip, thus igniting fire, can not reach the B1 grade indicators, so it is classified in B2 grade combustible material.
Fire-resistant aluminum plastic plate because of its plastic core material using special flame retardant polyethylene material, in the fire performance testing process in the vertical combustion furnace experiment), after the aluminum plate heat, still can not quickly fire, very difficult to burn, also do not produce toxic corrosive gas, no drops, smoke is very little, and the material combustion fumes Toxic total non-lethal concentration Lco 25mg/L, infected mice do not die, infected within three days do not die, and weight recovery, to reach the quasi-safe level, the indicators can meet the national standard requirements, so it is classified in The B1 grade refractory material or A-grade non-combustible (composite core) material.
Factory Information of Fireproof ACP sheets
HLCALUMINIUM is a professional manufacturer of aluminum composite panels in China with over 20 years of experience. HLCALUMINIUM was founded in 2000 and specializes in building materials such as aluminum corrugated composite plates (ACCP), aluminum composite panels (ACP), color coated aluminum rolls, etc. HLCALUMINIUM plant covers an area of 15,000 square meters, the warehouse covers an area of 5000 square meters, a total of 9 advanced production lines. ACP panels can produce more than 30,000 square meters per day. Our company has passed the ISO9001, ISO14001 and OHSAS18001 certification.
